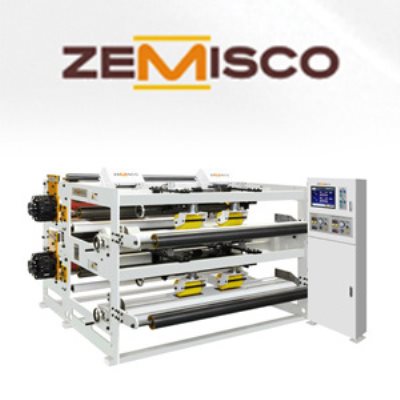

Bridge Web Auto Control System (WACS) integrates a single faced web aligning system and web tension control system within a single frame resulting inminimum installation space required.
|
ITEM |
WACS |
|
Web Guide Control Accuracy |
Up to 400mpm ±1.0mm |
|
Web Detecting Source |
Web Surface Scanning by Laser |
|
Initial Web Thread-up |
Auxiliary Manual Centering Guide with infeed pulling motor system |
|
Manual Guide System |
Synchronized Paddle Type Guides for both sides |
|
Mechanical Web Guiding Parts |
Two Axes of each 3/4/5 rubber wheels controlled by Servo Motors |
|
Data Communication |
TCP/IP through Ethernet cable |
|
Ambient Temperature |
0℃~40℃ |
|
Brake System |
Pneumatic Disk Brake |
|
Tension Measuring |
by Load Cell |
|
Max. Tension Control |
200kgf |
|
Tension Brake Cylinder Dia. |
ø252mm |
|
Electric Consumption |
2.8 ~ 3.5 KW |
|
2.5m Machine Size |
3200(W) x 2300(L) x 1520(H) |
|
Machine Weight |
3 tons |
|
Tension Leveling Roll |
Standard |
