Defect Marking

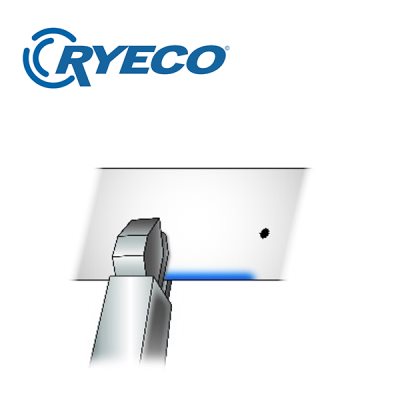

This system places marks on a web at a position relative to a defect or process upset.
-
Sprays up
-
to 6 colors of defect marks on any web material at any speed.
-
Marks can be continuous or pulsed for the length of the defect or as short as 0.5 milliseconds.
-
Marks can be visible to the human eye or detected with a Mark Detection System.
-
Marks can be invisible and only detectable with a Mark Detection System.
-
Mark defects automatically from a Web Inspection System or with process control equipment.
-
Operators can manually mark defects via the system’s control cabinet, as they occur.
-
Maintenance aided with cleaning and flushing capabilities
|
Defect Marking
This system places marks on a web at a position relative to a defect or process upset.
-
Sprays up
-
to 6 colors of defect marks on any web material at any speed.
-
Marks can be continuous or pulsed for the length of the defect or as short as 0.5 milliseconds.
-
Marks can be visible to the human eye or detected with a Mark Detection System.
-
Marks can be invisible and only detectable with a Mark Detection System.
-
Mark defects automatically from a Web Inspection System or with process control equipment.
-
Operators can manually mark defects via the system’s control cabinet, as they occur.
-
Maintenance aided with cleaning and flushing capabilities
|
|
Code Marking
This system encodes values onto a moving web.
-
Generates code marks in 1 color on any web material at any speed.
-
Accepts code sequences as binary digital pulses or serially as a decimal number.
-
Marks individual code bits as fast as 500 microsecond pulses every 5 milliseconds.
-
Can be configured to track the edge of a moving web to maintain consistent code positioning.
-
Encodes values up to 32 bits long.
-
RYECO-generated codes have built-in error checking and encoder verification.
-
Maintenance aided with cleaning and flushing capabilities.
Break Marking
This system places a mark on the web after a sheet break is restored.
-
Sprays break marks in one or more colors and on any web material at any speed.
-
The system accepts break signals from RYECO Sheet Break Detection Systems or other break detectors.
-
The system also accepts break signals from RYECO Ply Break Detection Systems for marking ply breaks in multi-ply tissue products.
-
The length of the break mark is an adjustable, distance or time-based parameter.
-
Color HMI for easy setup and use.
-
Maintenance aided with cleaning and flushing capabilities
Sheet Count Marking
This system counts sheets as they are stacked and places a mark at a specified number of sheets.
-
Color HMI displays a running total of the number of sheets counted (value will reset each time a mark is made). It also provides marking frequency in number of sheets, shows the number of sheets to mark, and displays mark length.
-
Marks can be invisible or made in any color.
-
The system can use an encoder signal to guarantee consistent mark lengths at any speed.
-
Maintenance aided with cleaning and flushing capabilities
Stripe Marking

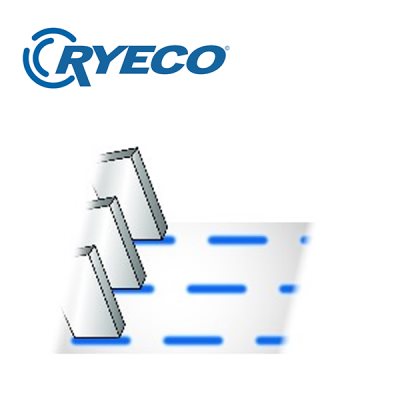

This system places continuous or dashed stripes on a web to indicate web orientation or product type.
-
Sprays marks in 3-colors or can spray invisible dye to be seen under special lighting.
-
Customers can easily switch between continuous or dashed marking modes and set the length and spacing of dashed marks.
-
Markers can be mounted on the edge or in lanes across the moving web.
-
Maintenance aided with cleaning and flushing capabilities.
-
Non-contacting marking method doesn’t use rollers or pens.
Registration Marking
This system places marks on a web at precise distance intervals to be used as a registration mark for downstream processes.
-
Sprays marks in any color including invisible marks that are detected under special lighting.
-
Marks can be atomized or un-atomized.
-
Can spray on any substrate and at any speed.
-
The signal to mark can come from an encoder or another precision input.
-
Maintenance aided with cleaning and flushing capabilities.
End of Roll Marking
This system places a mark on a roll to indicate that the end of the roll is approaching downstream operators and users.
-
Sprays marks in any color including invisible marks that are detected under special lighting.
-
Marks can be dashed or continuous.
-
Customers can select desired length of the mark with the RYECO system.
-
Encoder signal is used for determining mark lengths and aids the marking process over a wide range of speeds.
-
Maintenance aided with cleaning and flushing capabilities.
